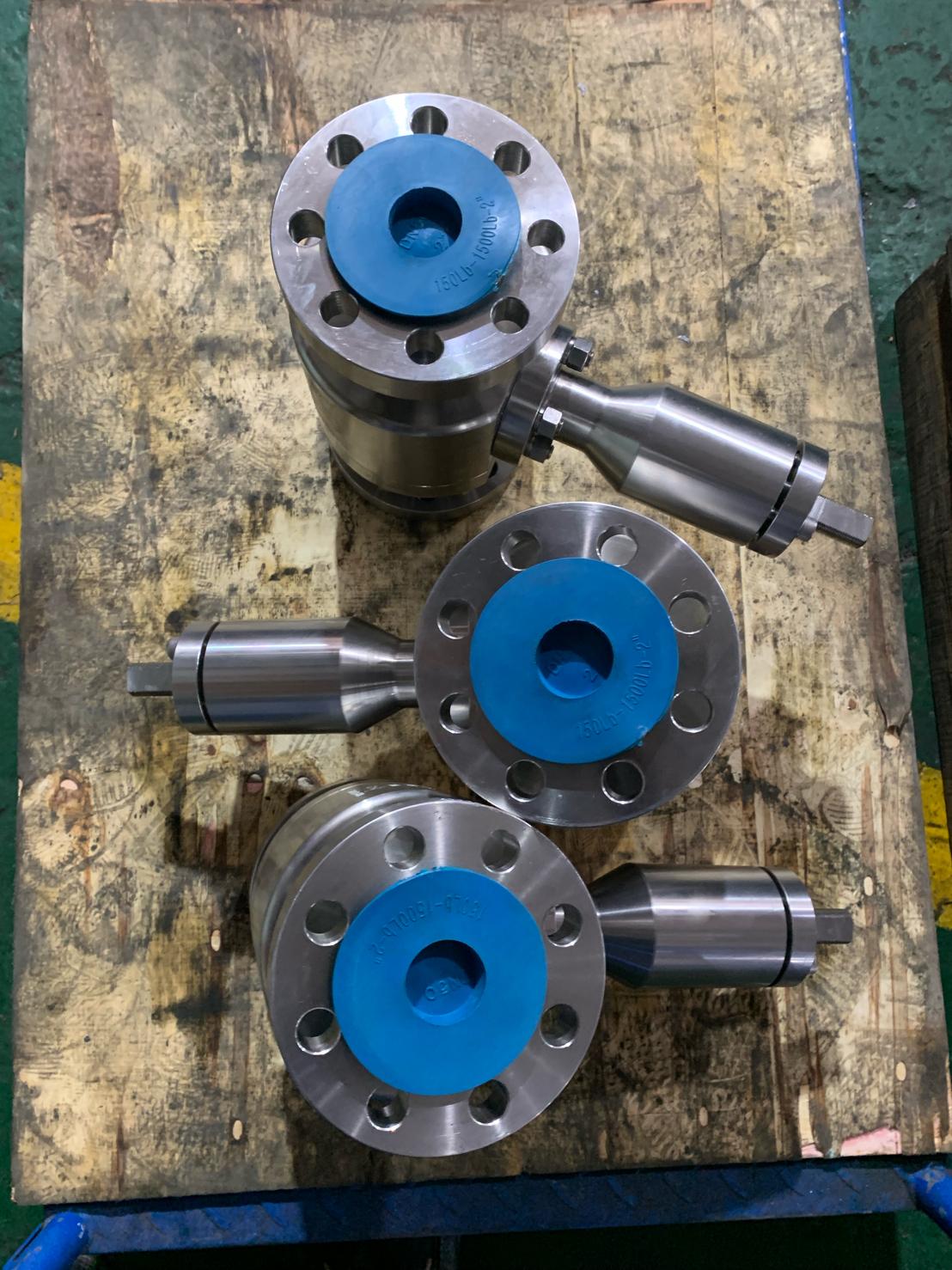

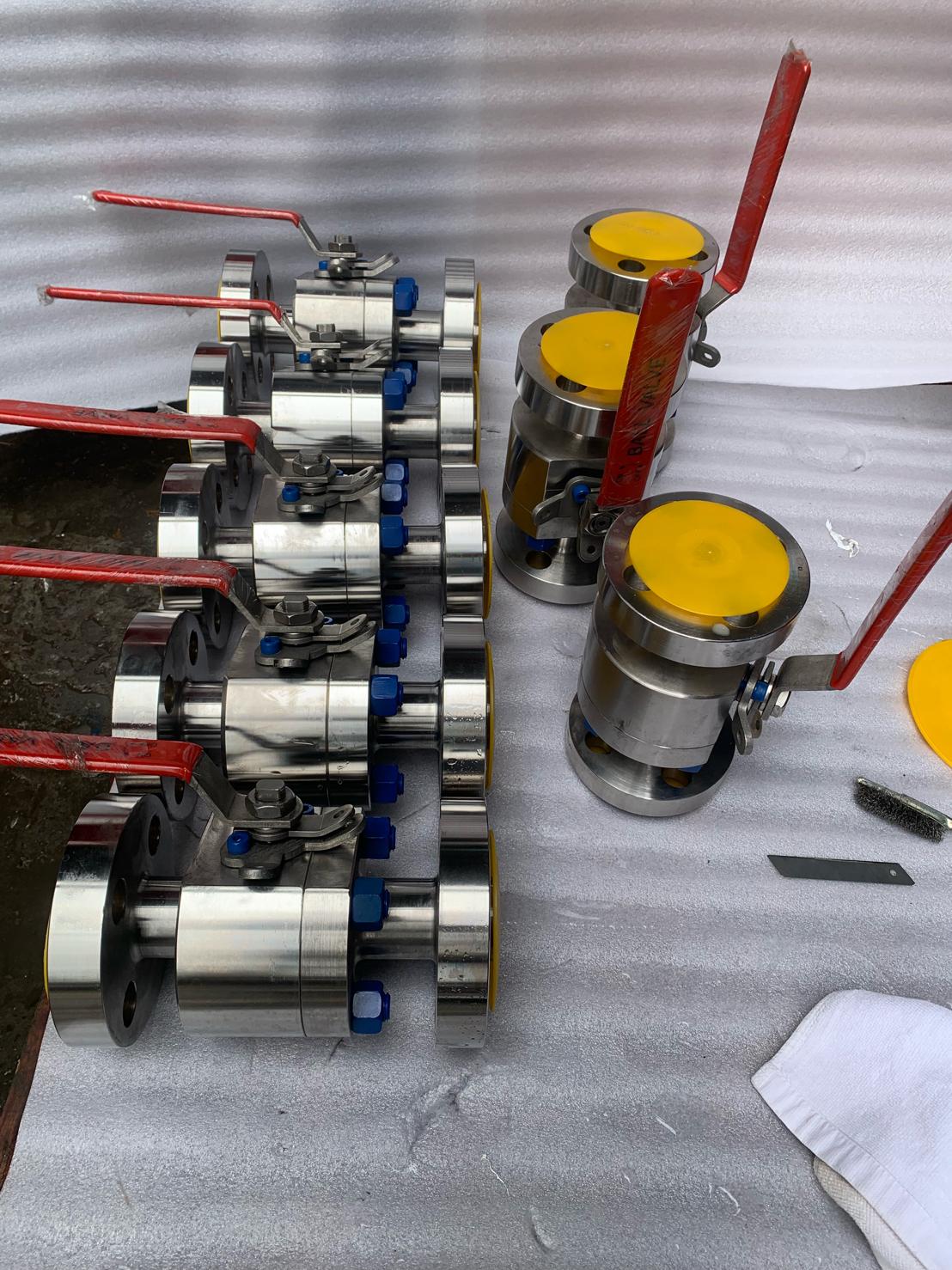

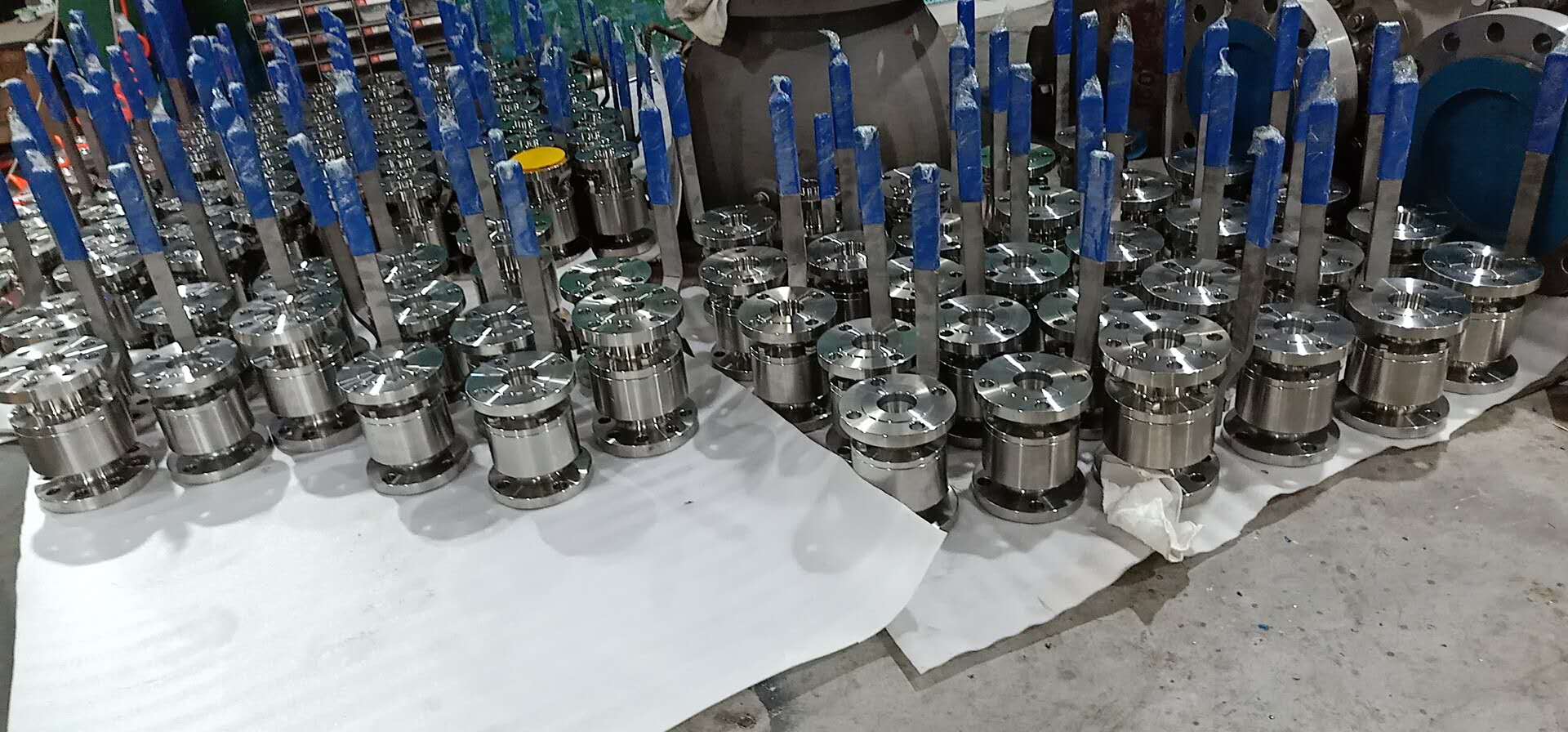

Floating Ball Valve

API 6D, ISO 17292 Design

Full Bore And Reduced Bore Design

Flanged, Welding, Threaded Ends

Anti Blow‐Out Stem

Anti Static Device

Fire Safe Design


Specifications

PRODUCT RANGE:

Size: 1/4” to 6”
Pressure Classes:
ASME 150# to 600#
ISO 17292 800#
3000, 6000 psi
Temperature Range: ‐196°C to 200°C
DESIGN FEATURES:

Soft Seating Standard
Stem Extension On Request
Welded Pups / Nipples On Request
MATERIAL SELECTION:

Temperature Range: ‐196°C to 200°C
BODY, CLOSURE
– CS (ASTM A105), LTCS (ASTM A350 LF2)
– Austenitic SS (ASTM A182 F304, F316)
– Duplex SS 22% Cr (ASTM A182 F51)
– Superduplex SS 25% Cr (ASTM A182 F53/F55)
– 6Mo SS (ASTM A182 F44)
– Inconel 625
– Incoloy 825
– Monel
BODY SEALS / SEAT SEALS
– Viton A FKM O‐ring
– Viton GLT FKM O‐ring
– Viton AED FKM O‐ring
– HNBR AED O‐ring
– FFKM O‐ring
– PTFE Seals
– Graphite Packing / Gaskets
TRIM (SEAT, BALL and STEM)
– CS (ASTM A105), LTCS (ASTM A350 LF2) + ENP 0.003”
– AISI 410 Martensitic SS (ASTM A182 F6a)
– 17‐4 PH
– Austenitic SS (ASTM A182 F304, F316)
– Duplex SS 22% Cr (ASTM A182 F51)
– Superduplex SS 25% Cr (ASTM A182 F53/F55)
– 6Mo SS (ASTM A182 F44)
– Inconel 625
– Inconel 718
– Incoloy 825
– Monel
SEAT INSERT
– PTFE / RPTFE
– Nylon / DEVLON V
– PCTFE / KEL‐F
– PEEK
BOLTING
– ASTM A193 B7/B7M, ASTM A320 L7/L7M,
– A193/A320 B8/B8M
– UNS S31803, UNS S32760, ASTM A453‐GR.660
